Products from Warner Electric

Warner Electric Brakes from Transdrive

Warner ERD Brake

Warner ERD Brake

Transdrive hold comprehensive stocks of industrial clutches and brakes from Warner Electric. Our stocks include full units and spares for the Warner ERD range of brakes from sizes 5 to 35.

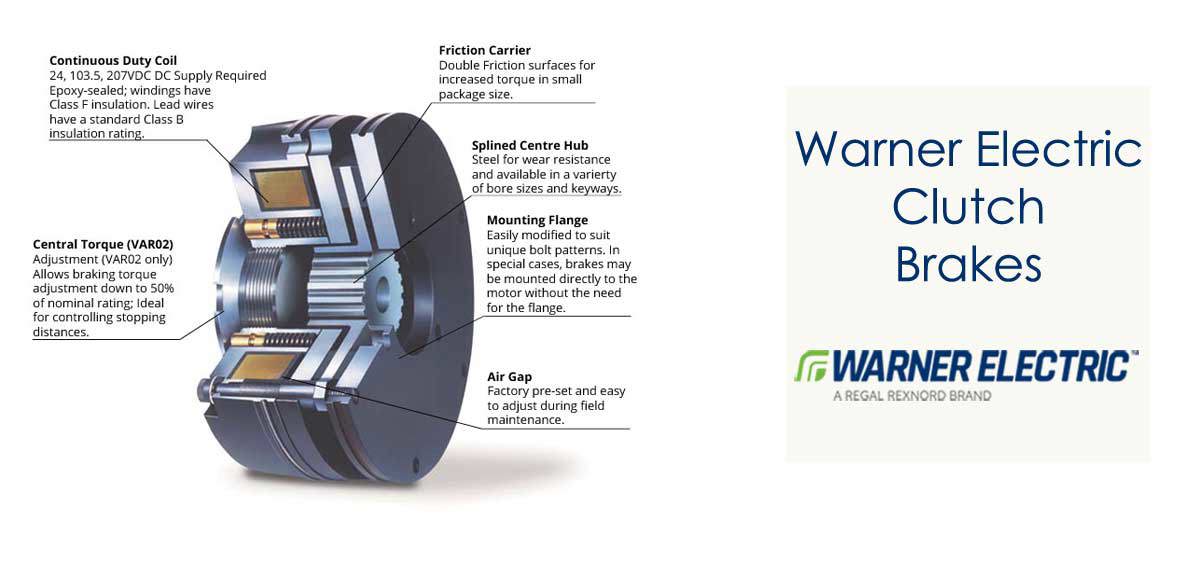

ERD Series Brakes are dual purpose brakes that can perform static holding as well as dynamic stopping functions. These brakes are designed to safely keep the load in position in the event of a power or motor failure, whether intentional or accidental. An optional manual release is and allows the operator to safely move the load even when no power is available. Torque adjustment of up to 50% of the Dynamic capability is also available (VAR02).

Warner EM Clutch Brake Units

Warner EM Clutch Brake Unit

Warner Electric Electro Modules are individual clutch or brake units which are assembled together to comprise a clutch, brake, or clutch/brake combination.

Warner Electric Electro Modules offer the ultimate in clutch/brake convenience. They are easy and quick to install and require no lubrication or maintenance for life.

  • Modular design flexibility
  • 0.18kW to 5.5kW at 1500 rpm
  • 1/4 to 7-1/2 HP at 1800 rpm
  • Outstanding controllability
  • Smooth starts and stops
  • Consistent performance
  • Complete control capability

Warner Electric Wrap Spring Clutches

Warner Wrap Sprint Clutches

Wrap Spring Clutches and Clutch/Brakes

Transdrive offers a complete line of standard Warner Electric wrap spring clutches and clutch/brakes, available on short lead times for delivery anywhere in the world. As the industry leader in clutch/brake technology you can count on Transdrive for complete application assistance and after sale service.

Warner Electric CB Series Clutch/Brakes

Electrically actuated clutch/brake package. Designed for applications requiring a continuous rotational input that is converted into starting and stopping a load. Operate from either an AC or DC power source.
